Motor : 250W (Rated Voltage 36V; Ins Max Power 500W; Max Output Torque 50N.M)
Battery : 13Ah, 36V, 468Wh, with Battery Protection System
Max. Speed: 25 km/h
Fork: Hydraulic with Lockout-80mm travel
Front & Rear Brake: Mechanical Disc-160mm Rotor
Tires: CST 27.5"*1.75" Pneumatic Tires
| GENERAL | |
|---|---|
| Brand: Eleglide | Type: |

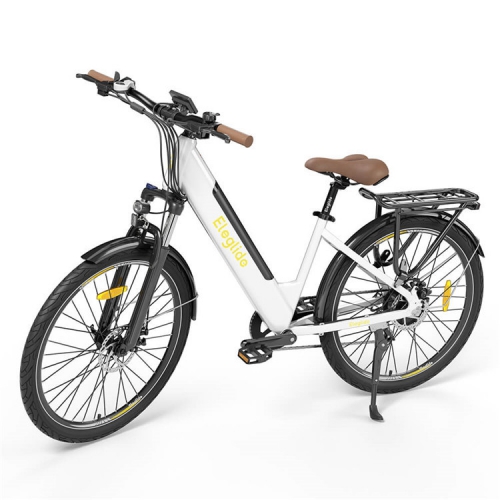

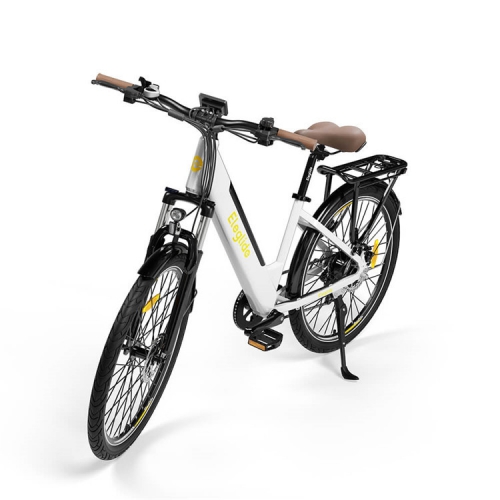

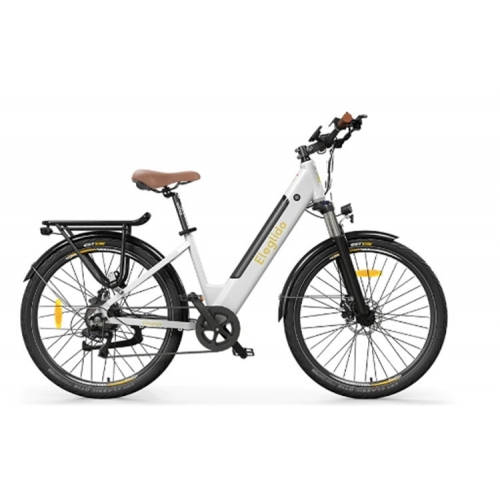

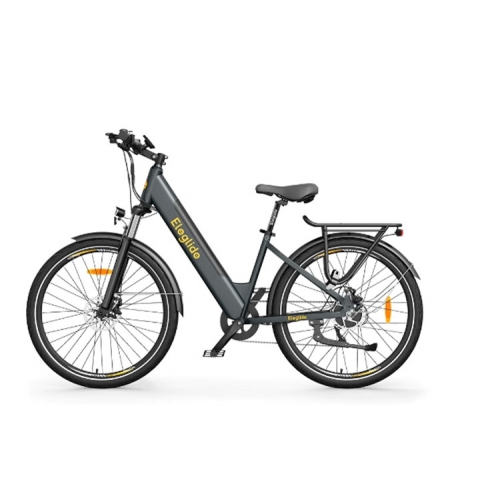

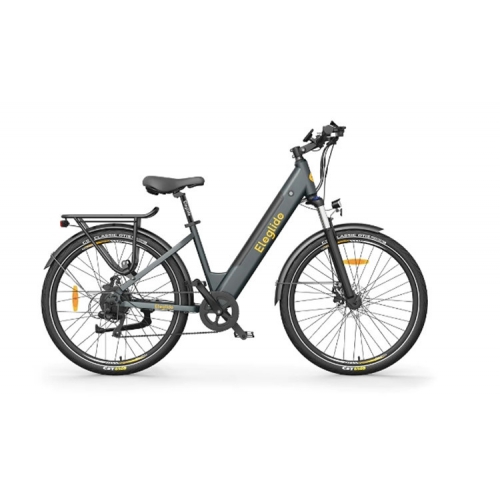

| Model: T1 Step-Thru | Color: White, Grey |
| Material: Aluminum Alloy |
| SPECIFICATION | |
|---|---|
| Max Range: 100km (Assist Mode), No Limit (Manual Mode) | Test Condition: The max range is achieved with a 75kg load and a constant speed of 15km/h on flat roads without strong winds at 26°C. |
| Max. Speed: 25 km/h | Max. Load: 120 kg |
| Motor: 250W (Rated Voltage 36V; Ins Max Power 500W; Max Output Torque 50N.M) | Motor Brand: ANADA |
| Battery: 13Ah, 36V, 468Wh, with Battery Protection System | Charging Time: About 7 hours |
| Charger Output: 100-240V 2A (Input), 42V 2A (Output) | Tires: CST 27.5"*1.75" Pneumatic Tires |
| Fork: Hydraulic with Lockout-80mm travel | Suspension: Mechanical Damping with Lockout |
| Front & Rear Brake: Mechanical Disc-160mm Rotor | Braking System: Dual Disc Brakes & Auto Power-off Design |
| Derailleur: Shimano Gear 7 Speeds (Rear) | Waterproof Rate: IPX4 |
| Height of Saddle: 810mm-990mm | Saddle: Selle Royal (SR) |
| Display: 3.5" LCD | Recommended height of cyclists: 155-195cm (5.09ft-6.39ft) |
| 5 Speed Mode | Weight & Size |
|---|---|
| Speed 1: 12 km/h | Weight: 26KG (N.W.) 30.5KG (G.W.) |
| Speed 2: 16 km/h | Package Size: 1480x250x830mm |
| Speed 3: 20 km/h | Unfolded Size: 1790x680x1120mm |
| Speed 4: 23 km/h | Height of Saddle (From The Ground): 810mm-990mm |
| Speed 5: 25 km/h | Length of Handlebar: 660mm |
|
Package Contents
|
|
|---|---|
| 1 x T1 Step-Thru | 2 x Pedal |
| 1 x Charger | 1 x Tool Kit |
| 2 x Key | 1 x User Manual |
| 1 x Spoke Reflector | 1 x |
| 1 x |
1 x LCD Display |
